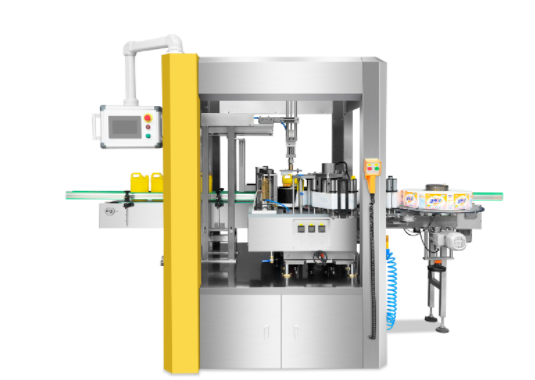

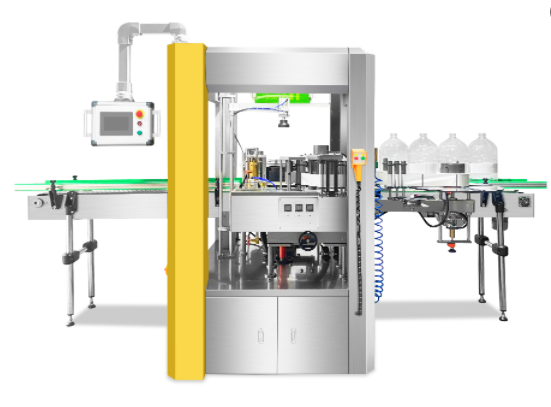

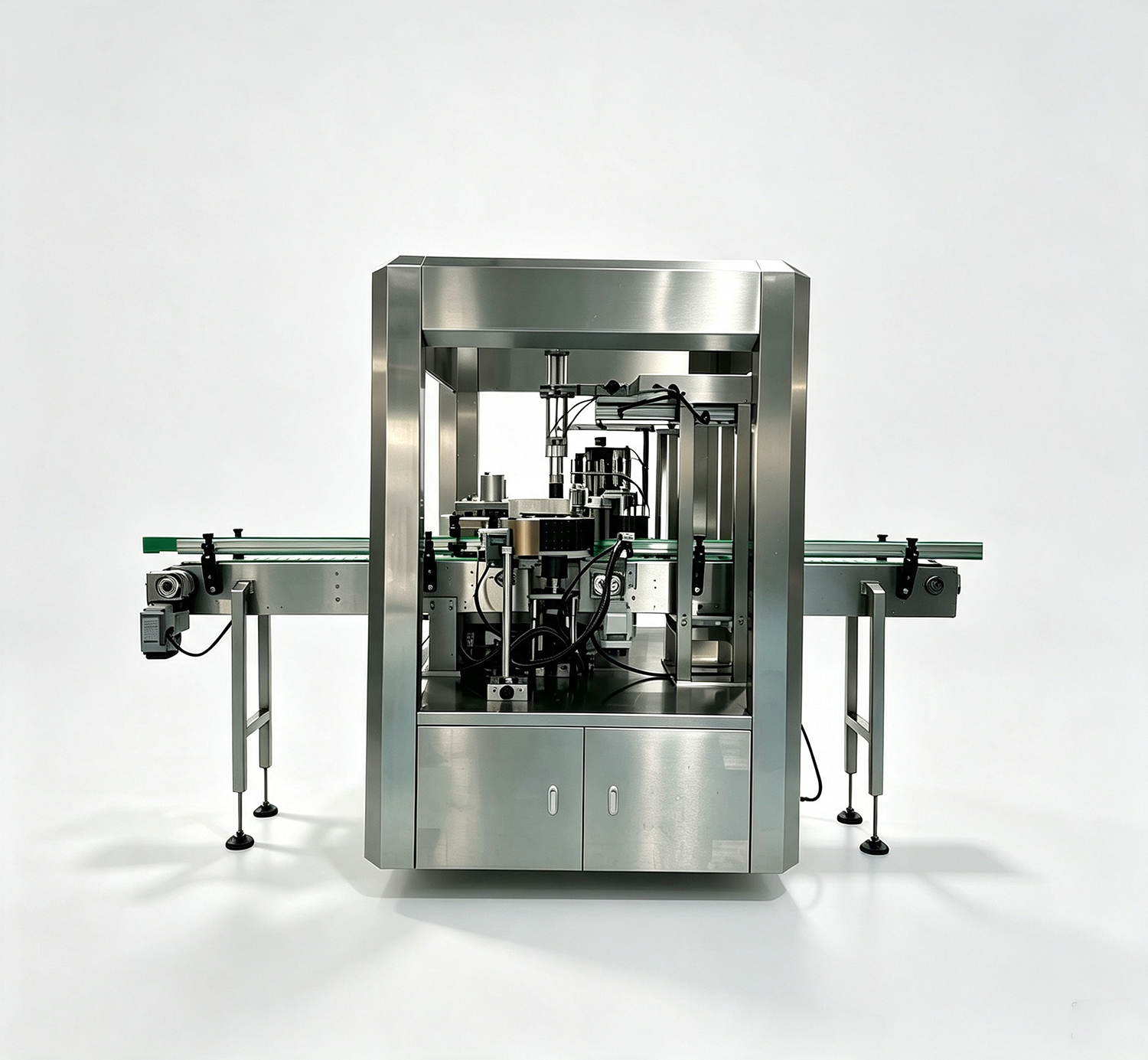

Linear hot melt adhesive labeling machine
|
Labeled product type |
Suitable for labeling on plastic, metal, glass, etc., large round containers |
|
Labeling type |
OPP film labels, paper-plastic composite films, labels, paper labels |
|
label size |
Length : 300-420mm Width 40-145mm |
|
Product size ( L*W*H ) |
Single station: L(40-150)mm*W(40-100)mm*H(50-300)mm (can be customized) |
|
Labeling speed |
Single station 1000 BPH |
|
Labeling accuracy |
± 1mm |
|
Maximum labeling width ( standard height ) |
100mm (can be customized) |
|
Label maximum outer diameter |
600mm |
|
Paper core diameter |
152mm |
|
Maximum bidding speed |
Tag maximum speed 100 meters / minute |
|
Labeling colloid |
Hot melt glue, only apply glue on both ends of the label |
|
Gluing temperature |
120~160 ℃ |
|
Speed adjustment method |
Stepless speed regulation |
|
conveyor |
Length: 3500mm Width : 100mm Height : 1100mm ± 30mm |
|
Power consumption (W) |
8000 |
|
Air consumption (MPA) |
5-6 |
|
power supply |
Three-phase 380V 50Hz 8000W |
|
Mechanical dimensions ( L*W*H ) (can be adjusted according to customer requirements) |
1380*2000*1900mm |
|
Total Weight |
About 2500kg |
