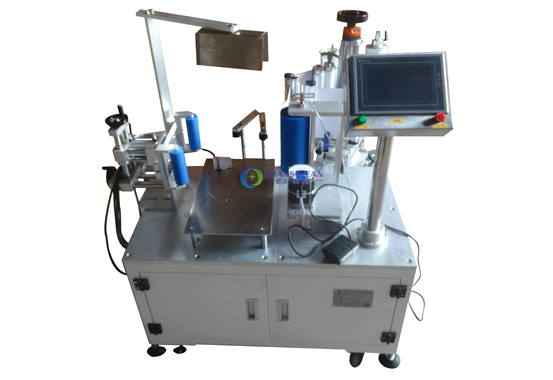

Name: TY-607 Big Round Bucket Labeling Machine
Suitable for cylindrical products labeling.
2. Application：
1) Label: Adhesive label, adhesive film;
2) Product：cylindrical products;
3) Industry：widely used in industries such as chemical, cosmetics, petrochemical, pharmaceutical, and so on.
3. Technical Parameters
Labeling Precision
| ±1mm (not concern the influence brought by product and label)； |
Labeling Capacity | 15～30pcs/min（relates to product and label size）； |
Product Size | L: 20 - 200 mm |
Label Size | Min size: 6(L)*15(W) Max size: 350(L)*210(W) |
Dimension | 1350*1270*1550 mm（L×W×H）； |
Power Consumption | 990W |
Voltage | 220V 50/60HZ； |
Weight | 120KG |
Work Air Pressure | 0.4Mpa |
4 . Labeling Process:
1) Put bucket on the fixture（*fix the handle with the fixture on the top);
2) Press the pedal switch；
3) Positioning(detect the labeling position) ；
4) Labeling;
5) Get the bucket out；
6) Put bucket on the fixture.
