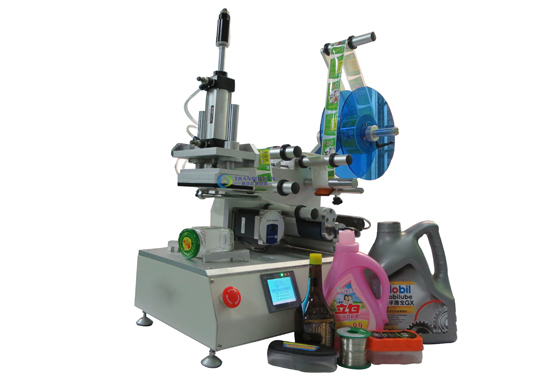

Name: TY-805 semi automatic plane labeling machine
1) Applicable labels: stickers labels, stickers film, electronic monitoring code, bar code and so on.
2) It applies to flat shape objects, such as: Shampoo flat bottle, packaging box, caps, plastic shell and so on
3) By suction type labeling method. apply to surface labeling.
4) By change the standard labeled mechanism, can be applied to the uneven surface labeling, such as concave plane, circular surface labeling and so on.
5) By change the mould, can labeling irregular production.
6) Widely used in daily chemical, bio-medical, food, stationery supplies, mechanical hardware and other industries.
2. Operation process:
3. Parameter
Labeling accuracy | ±0.5mm (excluding products, labels, error) |
Labeling speed | 15—35pcs/min(related to the product and label size) |
Apply the product size | Length: 20-200mm Width: 20-150mm Thickness: 20-120 (Can be customized) |
Apply label size | Length：15-100 mm; Width: 15-150 mm (Can be customized) |
Applicable to the power supply | 220V/50HZ (Need to add a voltage converter, according to the local voltage of different country) |
Apply labels inside diameter | 76mm |
Apply labels outside diameter | 240mm |
Voltage | 220V |
Power consumption | 330W |
Air pressure | 0.3---0.6Mpa |
Net size (length*width* height) | Machine size： 920*470*500 mm Packing size: 925*500*830mm |
Weight | About 70Kg |
4. Optional function
Hot coding, thermal transfer printer or inkjet printer (for printing production date, product batch number, valid date);
