semi auto 360° rotate labeler

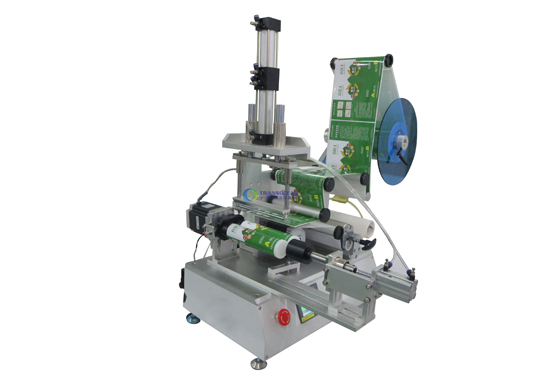

Name: TY-802 semi automatic plane 360 degrees rotate labeling machine

1. Applicable label and bottle:

1) Applicable labels: stickers labels, stickers film, electronic monitoring code, bar code and so on.

2) Applicable products: flat shape objects, the arc, the circumferential surface, concave, convex, or other surface attached to the label of the product; such as: Shampoo flat bottle, packaging box, caps, plastic shell and so on

3) Change the labeling mechanism, can be applied to the uneven surface labeling, such as prism surface, circular surface labeling and so on.

4) By change the mould, can labeling irregular production.

5) Widely used in daily chemical, bio-medical, food, stationery supplies, mechanical hardware and other industries.

2. Operation process:

3. Parameter

Labeling accuracy

±0.5mm (excluding products, labels, error)

Labeling speed

15--35 pcs/min (related to the product and label size)

Apply the product size

Length: 20-200mm

Width: 20-150mm

Thickness: 20-120

(Can be customized)

Apply label size

Length:15-100 mm;

Width: 15-110 mm

(Can be customized)

Applicable to the power supply

220V/50HZ (Need to add a voltage converter, according to the local voltage of different country)

Apply labels inside diameter


Apply labels outside diameter




Power consumption


Air pressure


Net size (length*width* height)

Machine size: 850*410*720mm

Packing size: 950*780*900mm


About 70Kg

4. Optional function

1) Hot coding , thermal transfer printer or inkjet printer (can printing production date, product batch number, valid date).

2) Transparent label sensor.
