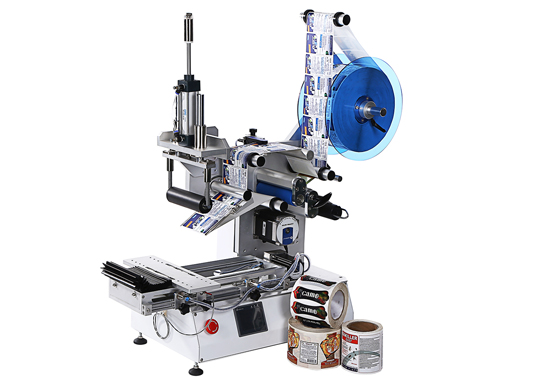

Name: TY-801 semi automatic plane front and back side labeling machine
1) Applicable labels: stickers labels, stickers film, electronic monitoring code, bar code and so on.
2) Applicable products: flat shape objects, the arc, the circumferential surface, concave, convex, or other surface attached to the label of the product; such as: Shampoo flat bottle, packaging box, caps, plastic shell and so on
3) Change the labeling mechanism, can be applied to the uneven surface labeling, such as prism surface, circular surface labeling and so on.
4) By change the mould, can labeling irregular production.
5) Widely used in daily chemical, bio-medical, food, stationery supplies, mechanical hardware and other industries.
2. Operation process:
3. Parameter
Labeling accuracy | ±0.5mm (excluding products, labels, error) |
Labeling speed | 15--35 pcs/min(related to the product and label size) |
Apply the product size | Length: 20-200mm Width: 20-150mm Thickness: 20-120 (Can be customized) |
Apply label size | Length：15-100 mm; Width: 15-110 mm (Can be customized) |
Applicable to the power supply | 220V/50HZ (Need to add a voltage converter, according to the local voltage of different country) |
Apply labels inside diameter | ￠76mm |
Apply labels outside diameter | ￠240mm |
Voltage | 220V |
Power consumption | 330W |
Air pressure | 0.3---0.6Mpa |
Net size (length*width* height) | Machine size： 950*780*900mm Packing size: 1220*640*1100mm |
Weight | NG:70Kg GW: 80KG |
4. Optional function
1) Hot coding , thermal transfer printer or inkjet printer (production date, product batch number, valid date);
2) Add double mould according different production.
3) Transparent label sensor.
