Semi-auto round bottle labeler

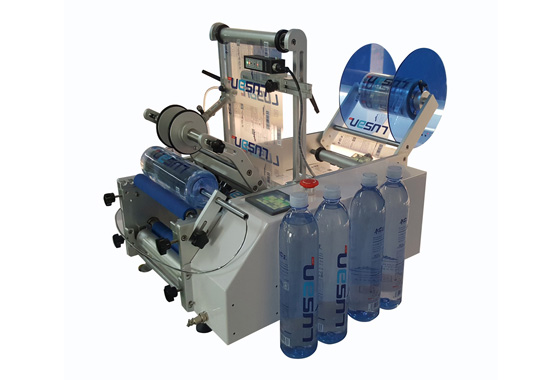

Name: TY-601 Semi-auto round bottle labeling machine

1. Applicable label and bottle:

1) Applicable labels: stickers labels, stickers film, electronic monitoring code, bar code and so on.

2) It apply to any kind of round bottle or cylindrical objects, such as: Xylitol, cosmetics round bottles, wine bottles and so on.

2. Basic use:

1) Can paste one label, or two labels.

2) It can paste a circle or half a circle for label, front side and back side.

3) Widely used in daily chemical, bio-medical, food, stationery supplies, mechanical hardware and other industries.

3. Operation process:

Manual operation:

Automatic operation

4. Parameter

Labeling accuracy

±0.5mm (excluding products, labels, error)

Labeling speed

15--35 pcs/min( depend on the size of product and label)

Apply the product diameter

15--150mm(Can be customized)

Apply label size

Length20 -380 mm; Width: 20 -220 mm

(Can be customized)

Applicable to the power supply

220V/50HZ (Need to add a voltage converter, according to the local voltage of different country)

Apply labels inside diameter


Apply labels outside diameter




Power consumption


Air pressure


Net size (length*width* height)

Machine size950*560*520 mm

Packing size: 1000*630*720mm


NW: 50KG

GW: 72Kg

5. Features

1) A high degree of automation: start switch by the Panasonic brand induction fiber to complete, without manual tread foot switch; pressure top of the whole action from the cylinder instead of complete, significantly reduce the operator labor intensity. Ordinary version 15-25 / High configuration version can reach 20-35 / min, greatly improving production efficiency.

2) Compatible with the cone-shaped bottle label, with a taper adjustment knob, a simple adjustment to meet the taper bottle labeling; paste standard quality, with product positioning, label corrective double positioning, label head and tail docking high degree of coincidence wrinkles, no bubbles, to enhance the quality of guarantee;

3) The main equipment used 304 stainless steel and 6061 senior aluminum production, in line with GMP production requirements.

4) High stability, Panasonic PLC + Panasonic touch screen + Panasonic needle-shaped electric eye + Germany Leuze brand label electric eye, composed of advanced electronic control system, support equipment 7 × 24 hours operation;

5) Durable, electrical separation, to prevent water vapor into the circuit and damage the circuit. Extend machine life.

6. Optional function

1) Positioning detection device, to achieve the location of the labeling.

2) Hot coding thermal transfer printer or inkjet printer. (production date, product batch number, valid date);

3) Transparent label sensor.

4) Automatic blow out the labeled bottle.
