Linear Cylinder Wall Labeling Machine

详细内容：

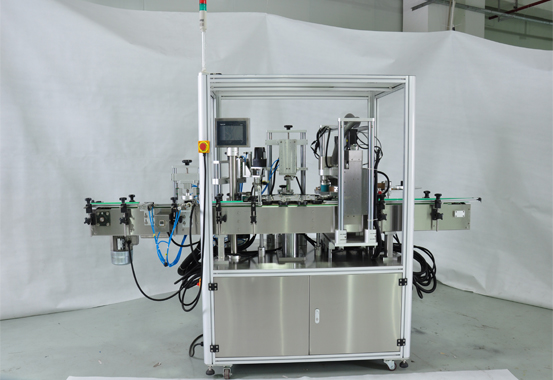

TYN-1210 Linear Cylinder Wall Labeling Machine



1.  Product performance characteristics

1).Suitable for the cylindrical inner labeling (such as car airbag PCS).

2).Touch operating system in English and Chinese, man-machine dialogue, operation simple.

3).Adopt Siemens PLC and DELTA servo motor control, ensure stable and reliable.

4).Adopt high-speed precision intermittent segmentation turntable positioning, can simultaneously labeling, cutting and press, improve efficiency

5).With air tightness test, realize one machine multi-purpose, reduce man power.

6).Link production lines, special design according to customer request.

2. Technical parameters

Power supply single-phase 220V 50Hz 4000W

Machine dimensions 2900*1000*1800mm

The method of speed adjustment uninterrupted-adjust rate

The largest speed of labeling 10pcs/min（can be adjusted by customer requirement）

Label feeding precision ±0.3mm

Label precision ±1mm

Max speed of conveyor 20m/min

Label volume inner diameter 76mm(can be adjusted by customer requirement)

Label volume outer diameter 300mm(can be adjusted by customer requirement)

Max label width 16mm（can be adjusted by customer requirement）

Max label width 0.05～0.2mm)

Production size 62～70mm(can be adjusted by customer requirement)

Apply range all need inside labeling container

Air source 6Kg 30L/min
