Auto round bottle positioning labeling machine

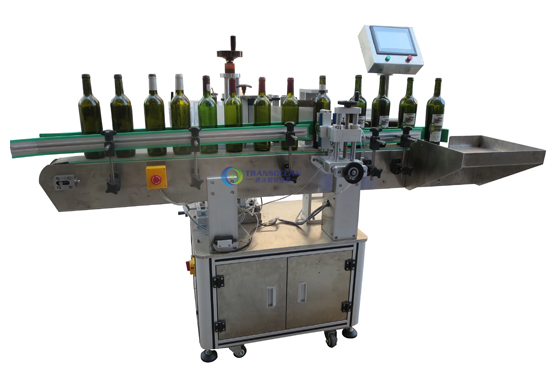

Name: TY-603 Automatic round bottle positioning labeling machine

1. Applicable label and bottle:

1) Applicable labels: stickers labels, stickers film, electronic monitoring code, bar code and so on.

2) Apply to round bottle, or cylindrical products which can standing steady. Particularly suitable for labeling transparent label.

2. Basic use:

1) Can paste one label, or two labels.

2) It can paste a circle or half a circle for label, front side and back side. Can positioning the right place for labeling.

3) Widely used in daily chemical, bio-medical, food, stationery supplies, mechanical hardware and other industries.

3. Operation process:

4. Parameter

Labeling accuracy

±1mm (excluding products, labels, error)

Labeling speed

20-60 pcs/min (related to the product and label size)

Apply the product diameter

25--120mm(Can be customized)

Apply label size

Length20 -300 mm;

Width: 20-170 mm

(Can be customized)

Applicable to the power supply

220V/50HZ (Need to add a voltage converter, according to the local voltage of different country)

Apply labels inside diameter


Apply labels outside diameter




Power consumption


Air pressure


size (L*W*H)

Machine size: 1935*1250*1430mm

Packing size: 1985*1300*1480mm


About 200Kg

5. Features

l Wide range of applications, can meet whole circle or half circle labeling. The size of the bottle type is easy to change, easy to adjust.

l The label of the degree of coincidence is very high, the standard belt is the use of correction mechanism, the standard does not go side, labeling parts x / y / z three directions and tilt, a total of eight degrees of freedom adjustable, , Label coincidence is high.

l Excellent quality labeling, the use of elastic pressure coated belt, labeling flat, no wrinkles, improve the quality of packaging.

l Flexible application, the bottle standing vertical labeling, with automatic sub-bottle function, stand-alone production, but also can be connected to the production line.

l Intelligent control, automatic photoelectric tracking, with no bottle no labeling, when there is no label, it can automatically correct, automatic label detection function to prevent leakage and label waste.

l High stability, Panasonic PLC + Panasonic touch screen + Panasonic needle-shaped electric eye + Germany Leuze brand label electric eye, composed of advanced electronic control system, support equipment 7 × 24 hours operation;

l Adjust the simple, labeling speed, delivery speed, sub-bottle speed can be achieved step less speed regulation, according to the need to adjust;

6. Optional function

1) Hot coding, thermal transfer printer or inkjet printer. (production date, product batch number, valid date);

2) Auto feeding function

3) Auto collection function

4) Increase the labeling device;
