Rotary sticker round bottle labeler

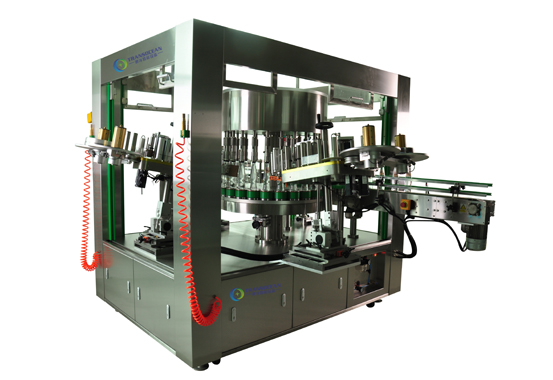

Name:TYBY-24243R Automatic Rotary Adhesive Round Bottle Labeling Machine

Product performance characteristics

1). Suitable for round bottle with surround labeling, front/ back side and sitioning labeling.
2). Suitable for stickers labeling machine in the industry of beverages, mineral water etc.

3).Adopts for Japanese SANYO imported servo motor and Siemens PLC control simple operation, stability running.

4).Adopts for screw and star wheel cooperate, ensure high speed operation, products smooth and stable.

5).Adopts CAM mechanical rotating positioning, using the advantage of the bottle itself to find anchor point, greatly improve stability and accuracy.

6).Out of the station can be adjusted 3 d space, especially suitable for taper type bottle, and easy to adjust different size of the product.

7).Labeling speed 60 m/min. Max output speed 24000 BPH. Can connector with filling line production, greatly increased speed and saving cost

Labeling process:

Technical parameters

Apply labeling production

For all kinds of round shape bottles

Label material


Labeling production size

L: 20-500mm

W: 10-200mm

labeling production size(L*W*H)


Available model and speed

one labeling head

12pcs bottle mold TYB-12091R 9000BPH

16 pcs bottle mold TYB-16151R 15000BPH

20 pcs bottle moud TYB-20241R 18000BPH

24 pcs bottle mold TYB-24361R 24000BPH

double labeling heads

16 pcs bottle mold TYB-16152R 15000BPH

20 pcs bottle mold TYB-20242R 18000BPH

24 pcs bottle mold TYB-24362R 24000BPH

three labeling heads

16 pcs bottle mold TYB-16153R 15000BPH

20 pcs bottle mold TYB-20243R 18000BPH

24 pcs bottle mold TYB-24363R 24000BPH

Max speed

24000 BPH

Labeling accuracy


Max width of label

130mmCan be customized

Max length of label


label outside diameter


labels inside diameter(paper core)


Max out label speed


Conveyor belt


W: 100mm

H: 1100mm ±30mm

Conveyor speed


Speed adjustment method

Uninterrupted-adjust rate

Power consumption (W)


Air consumption(MPA)


power supply

Three phase 380V 50Hz

According to local voltage in different countries, can add voltage transformer after customer told us about the local voltage.

Occupied floor area


Can be customized

Machine net sizeL*W*H

Can be customized

1 pcs and 2 pcs labeling heads size2820*2500*2050mm

3 pcs labeling heads size3000*3000*2050mm

Machine net weight

About 2500kg
