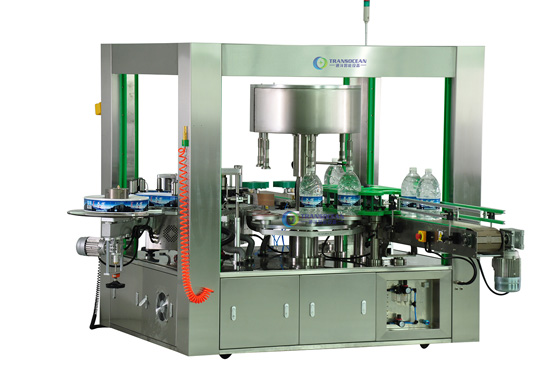

TYRT-0604R Automatic OPP Hot Melt Big Round Bottle Labeling Machine
1. Product performance characteristics
1). This model is suitable for OPP film, pearl film and other circumferential labeling of round bottles with larger diameters.
2). Hot melt adhesive labeling machine for plastic bottles in mineral water, beverage and other industries
3). It adopts servo motors imported from Japan's Sanyo and Siemens PLC control, which is easy to operate and stable and reliable.
4). Adopt advanced gluing system and vacuum drum combination to ensure high labeling accuracy. Only apply glue on both ends of the label to reduce the amount of glue used to save costs.
5). The synchronous belt wheel transmission system, and the use of screw and star wheel to match the bottle in and out, ensure that the product is smooth and stable in high-speed operation.
6). It can be connected to the filling line for production, which greatly improves the production speed and saves production costs.
2. Labeling process:
Bottle feeding→positioning→detection→cut label→absorb label→gluing→labeling→support label→out bottle.
The screw and star wheel are used to match the bottle in and out to ensure high-speed operation
3.technical parameters
Labeling product type | Suitable for labeling plastic, metal, glass, etc., round containers |
Suitable label type
| OPP/bopp hot melt adhesive, film label, paper-plastic composite film, label, paper label |
Label size | Length: 130-330mm Width: 20-145mm |
Labeled product size (standard model)
| 6 stations: height 50-300mm diameter 40-100mm 8 stations: height 50-300mm diameter 40-100mm 12 stations: height 50-300mm diameter 40-100mm 16 stations: height 50-300mm diameter 40-70mm 20 stations: height 50-300mm diameter 40-70mm (Note: The height adjustment range of each machine is ±50mm) |
Optional labeling station
| 6 stations TYRY-0604R 4000 BPH 8 stations TYRY-0806R 6000 BPH 12 stations TYRY-1209R 9000 BPH 16 stations TYRY-1615R 15000 BPH 20 stations TYRY-2024R 24000 BPH 24-station TYRY-2436R 36000 BPH |
Labeling speed | 36000BPH |
Container diameter | 40-100mm (standard model) |
Labeling accuracy | ±1mm |
Maximum label width (height) | 150mm (the width of the standard model can be customized)
|
Label outer diameter | 600mm |
Paper core diameter | 152mm |
Maximum bidding speed | Maximum label speed 150m/min |
Labeling colloid | Hot melt glue, only apply glue on both ends of the label |
Glue temperature | 120~160℃ |
Speed adjustment method | Stepless speed regulation |
conveyor | Length: 3500m; Width: 100m; Height: 1100mm ±30mm |
Power consumption (W) | 8000 |
Air consumption | 6KG-8L/min |
power supply | Three-phase 380V 50Hz 8000W |
Mechanical Dimensions | 2420*2500*2050mm |
Total Weight | About 3000kg |
